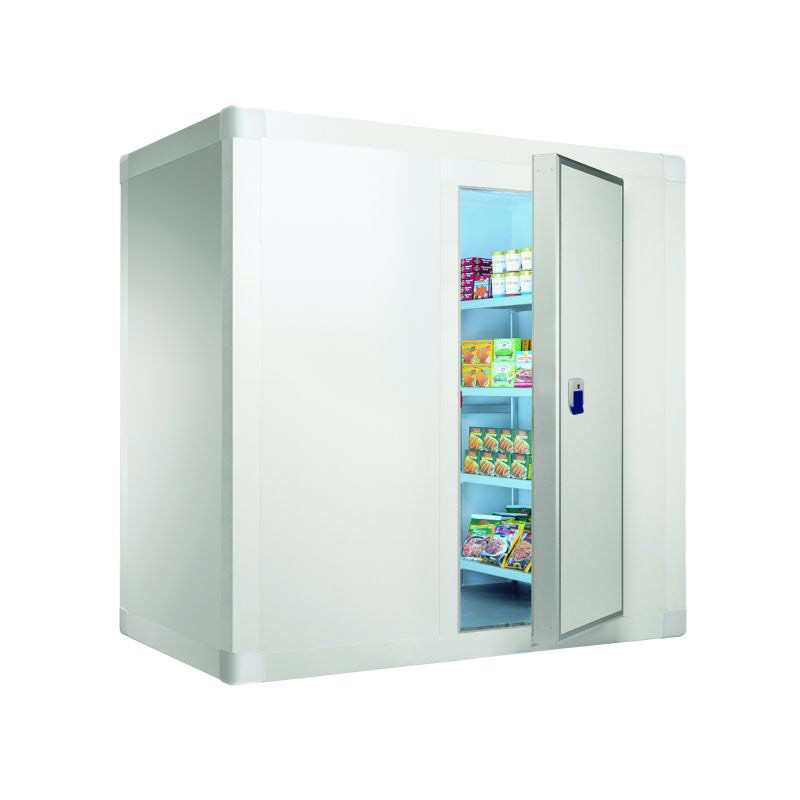

VSHD-P13 Monoblock Cold Room with Floor Panel

Panels are filled with polyurethane on both sides

Panel thicknesses (-5°C, +5°C)

External surfaces of wall panels 1006 Food Safe Quality (food safety system)

covered with 25 micron thick polyester paint in accordance with the standards, channeled, galvanized

Made of 0.50mm - 0.55mm thick sheet metal

Ceiling panels are made of polyester painted galvanized sheet with a thickness of 0.50 mm - 0.55 mm on the inner surface,

outer surface is made of 0.50 mm - 0.55 mm thick galvanized sheet or polyester painted galvanized sheet

Density of polyurethane filling is 40-42 kg/m³ and CFC free polyurethane is fireproof in B3 flammability class

Cold room panels can be assembled and disassembled,

With eccentric hook locking mechanism and self-supporting,

The contact surfaces of the panels are male and female to prevent the passage of air, heat and steam,

Panel coating surfaces are plasticized in a way that does not contain toxic substances and does not produce mold, odor and bacteria,

Cold room door has inside opening mechanism

The door of the cold room can be locked from the outside,

Cooling devices are included.

M³:14,17

Compressor power (hp): 1.30

Cooling Capacity (W): 1750

Dimension (mm): 3250x2500x2200
